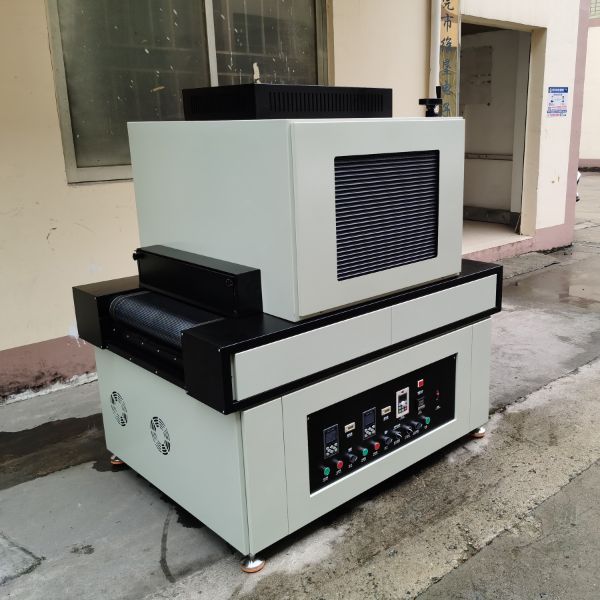

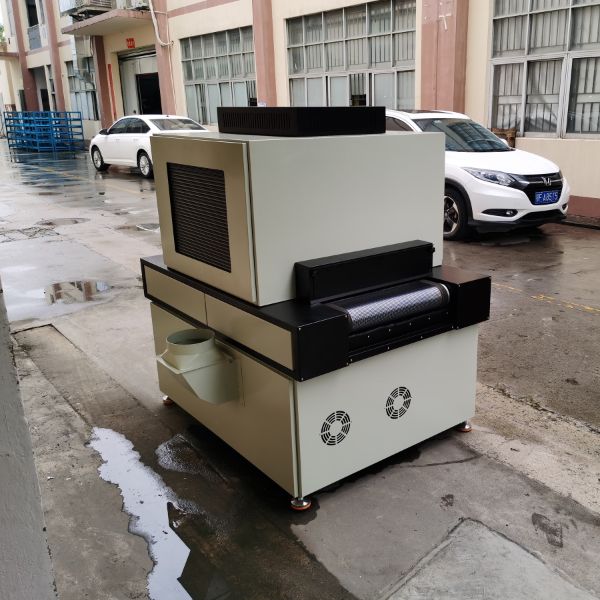

Roll-to-roll rear screen printing UV curing

■ Model: HT-UVAD602-60

■ Application examples:

Roll-to-roll screen printing machine, fully automatic roll-to-roll screen printing machine

Suitable product examples: screen printing of various roll materials such as precision electronics, communications, textiles, mobile phone protective films, PET, PVC, PC, B0PP films, etc.

■ Typical features:

Interface with web screen printing machine, online movement, low temperature and other functions

■Technical parameters:

Power requirements: single-phase 380VAC (power frequency AC) 50HZ (Hertz)

Machine power: about 13KW (kilowatt)

Overall dimensions: 1500 L (length) × 1100W (width) × 1610H (height) mm

Synchronization speed: 1.0~15m/min (meters/minute)

Radiation width: 600mm (mm)

Cooling method: forced air cooling

Light source type: high pressure Hg mercury lamp

Lamp line power: 100w/cm

Light source configuration: 6kw* 2 pieces

Light source life: According to HT test standards, the average is more than 800 (h) hours, and the light decay is not less than 80%

Main peak wavelength: 365nm (nanometer)

Power adjustment: 50~100% output power

Reflector: optical reflector

Typical applications: ultraviolet (UV) ink, glazing oil curing, suitable for non-explosion-proof environments

Special note: The above parameters are for reference only, and are based on Xinhaotian’s actual production dimensions.
