Composite material screen printing UV curing oven for the back end of screen printing

.

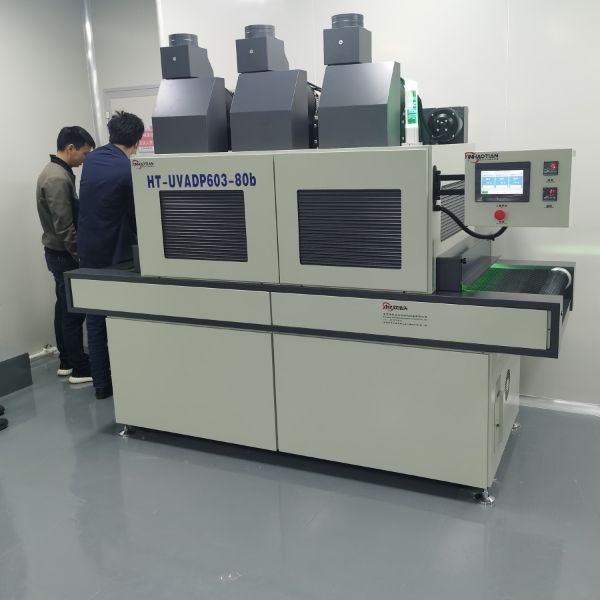

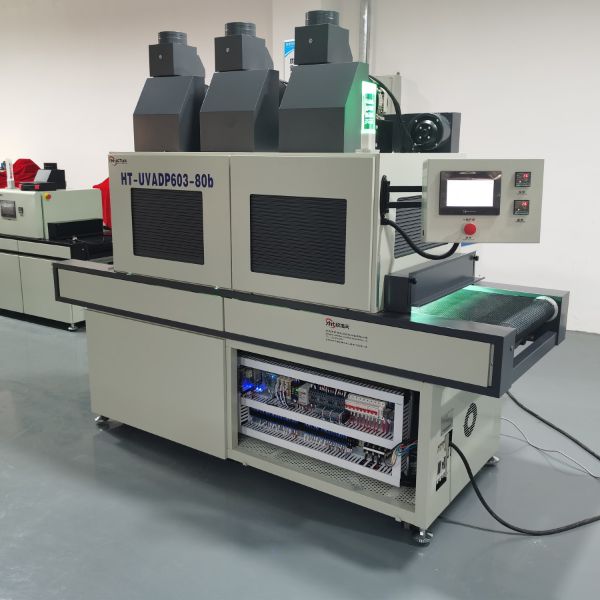

■ Product Name: UV Curing Oven

■ Model: HT-UVADP503-80

■ Application Industries: Aerospace, Consumer Electronics, Automotive, Protective Equipment, Sports Equipment

Industry Details: Composite Material Transfer, Natural Fibers, High-Performance Fiber, PMMA, PET, PC

Matching Machines: Transfer Silk Screen Printer

■ Typical Features: Low-temperature UV curing

■ Technical Specifications:

Power Requirements: Three-phase 380VAC (industrial frequency AC) 50HZ

Total Power: Approx. 30KW

Dimensions: L3200 (Length) * W800 (Width) * H2100 (Height) mm

Conveyor Direction: Reversible left/right

Entry Height: 100mm

Conveying Material: Teflon mesh belt, mesh 4*4mm, black

Speed Range: 1.0~8.0 m/min

Light Source Type: High-pressure mercury lamp

Lamp Power: 8KW*3

Reflector: HT custom optical reflector (can be paired with cold light lens first)

Wavelength Range: 365nm

Light Intensity Range: 50~200mw/cm2

Power Adjustment: 50~100% adjustable, individually controlled per group

Energy Range: 500~4500mj/cm2 (HT test standard, average >800h, light decay not less than 80%)

Height Adjustment: Automatic/Manual (optional)

Radiation Width: 500mm

Width Range: 500mm, evenly distributed, can support 5KG

Cooling Method: Air cooling (Special customization: mobile air conditioner)

Control Method: HMI interface operation (can switch between Chinese and English)

Alarm Functions: Over-temperature alarm, online energy detection (optional), fan malfunction alarm, power failure, emergency stop, tri-color light

■ Typical Applications: UV curing, suitable for non-explosive environments

■ Special Note: The above parameters are for reference only; actual dimensions by XinHaoTian production are standard
