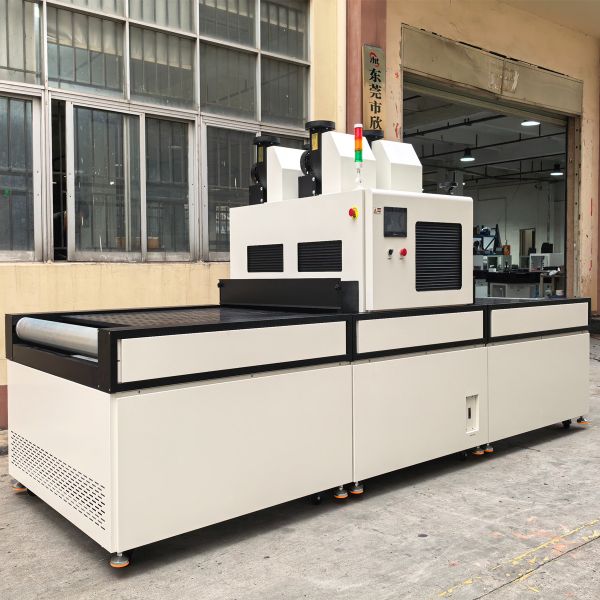

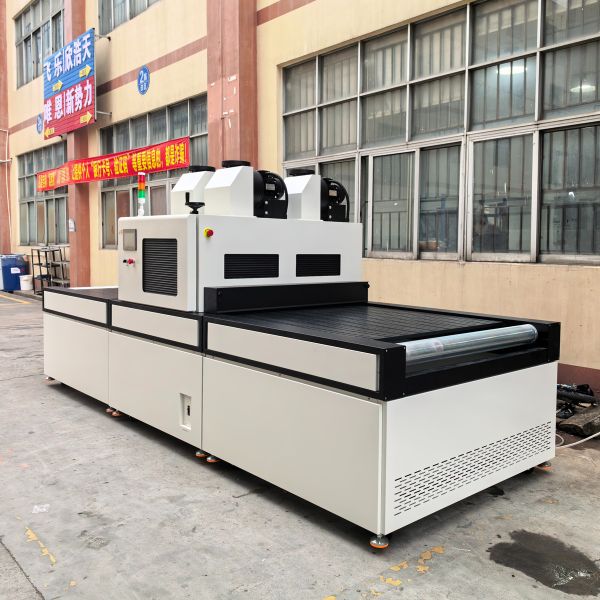

Hardware and Plastic Screen Printing UV Curing Oven

.

■ Product Name: UV Curing Oven

■ Model: HT-UVADP602-60

■ Application Industry: Metal and Plastic Screen Printing UV Curing

■ Typical Features: Inline UV Curing

■ Technical Specifications:

Power Requirement: Three-phase 380VAC (AC power) 50HZ

Total Power: About 13.5KW

Dimensions: L2600 (Length) * W895 (Width) * H1770 (Height) mm

Conveying Direction: Left to Right

Inlet Height: 100mm

Conveyor Material: Teflon Mesh Belt, Mesh 4*4mm, Black

Speed Range: 0.6~3.5m/min

Lamp Type: High-pressure Mercury Lamp

Lamp Power: 6KW*2

Reflector: HT Custom Optical Reflector (with optional cold mirror)

Wavelength Range: 365nm

Light Intensity Range: 50~300mw/cm²

Power Adjustment: 50~100% adjustable, independently controlled per group

Energy Range: 200~2000mj/cm² (according to HT testing standards, average above 800 hours, light decay not less than 80%)

Height Adjustment: Manual

Radiation Width: 600mm

Width Range: 600mm, evenly distributes load up to 5KG

Cooling Method: Air Cooling (Special Customization: Mobile Air Conditioner)

Control Method: HMI Interface Operation (with optional Chinese-English interface switch)

Alarm Functions: Over-temperature alarm, online energy monitoring (optional), fan failure alarm, power failure, emergency stop, three-color light

■ Typical Applications: UV (ultraviolet) curing, suitable for non-explosion-proof environments

■ Special Note: The above parameters are for reference only; actual dimensions produced by Xinhaotian shall prevail.
