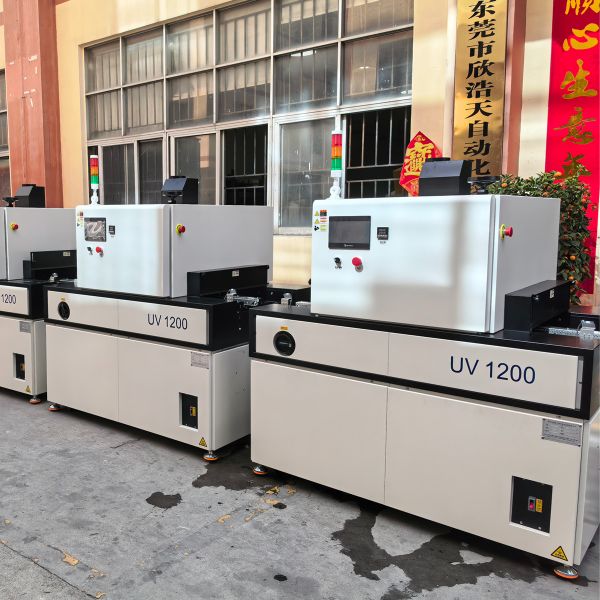

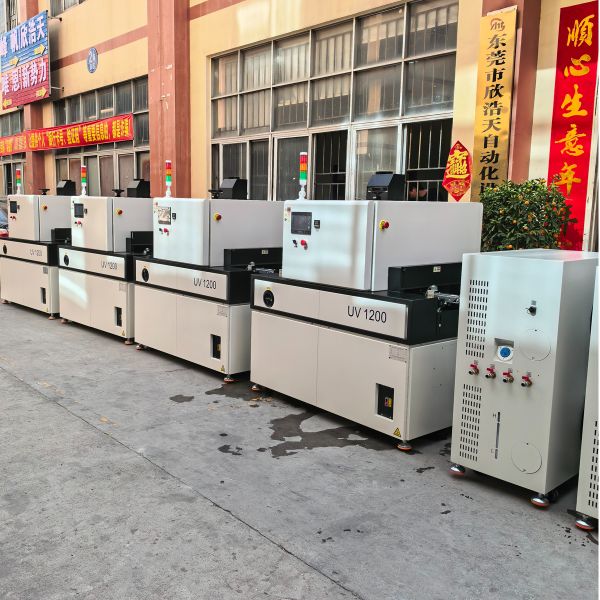

PCBA Dispensing LED UV Curing Oven

.

■ Product Name: LEDUV Curing Oven

■ Model: HT-DS400100-6C2-173

■ Application Industry: PCBA Glue Dispensing UV Curing

■ Typical Features: Works with precision dispensing machines for curing

■ Technical Specifications:

Power Supply Requirement: Three-phase 380VAC (industrial frequency AC) 50Hz

Total Power: About 6KW

Dimensions: L1500 (length) * W1200 (width) * H1500 (height) mm

Conveyor Direction: Left to right

Entry Height: 120mm

Conveying Material: 35B rail, chain pin length 5mm

Speed Range: 0.6~3.5 m/min

Light Source Type: LED UV

Light Source Power: 1730W*2

Reflector: Homemade

Wavelength Range: 395nm

Light Intensity Range: 100~1500 mW/cm²

Power Adjustment: 10~100% adjustable, each group controlled independently

Energy Range: 200~10000 mJ/cm² (According to HT test standard, average over 10000 hours, light decay not less than 85%)

Height Adjustment: Manual height adjustment

Radiation Width: 400mm

Width Range: 400mm, evenly distributed, can support 5KG weight

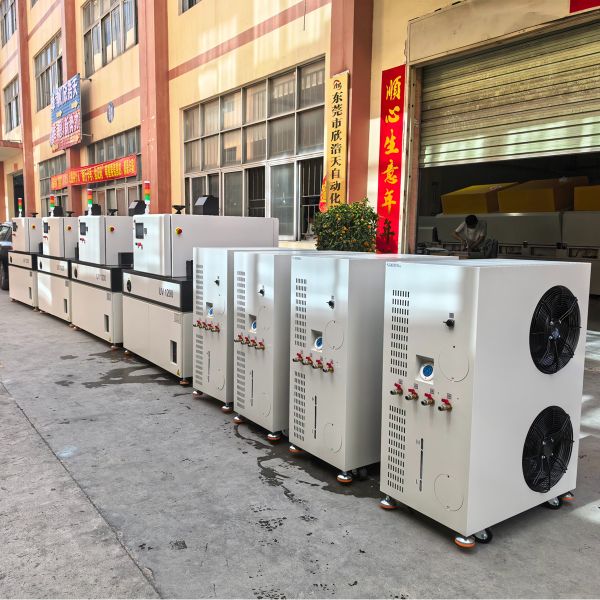

Cooling Method: Water cooling (Special customization: mobile air cooler)

Control Method: HMI interface operation (with optional Chinese/English interface switch)

Alarm Functions: Over-temperature alarm, power failure, emergency stop, three-color light

■ Typical Application: Ultraviolet (LEDUV) curing, suitable for non-explosive environment requirements

■ Special Note: The above parameters are for reference only. The actual dimensions are based on Xinhaotian production.

Application Scenario: To be updated, stay tuned.....
