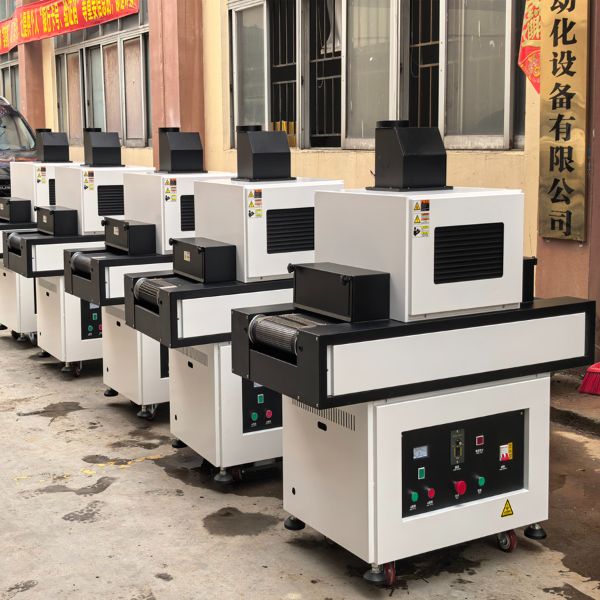

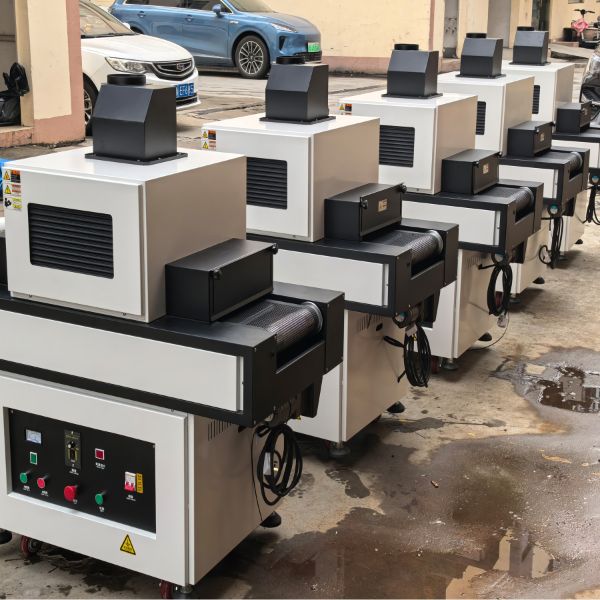

Economy UV Curing Oven

.

■ Model: HT-UVA301-20

■ Application Examples:

Matched with UV drying equipment on the production line.

Suitable product examples: Precision electronics, components, scientific testing, laboratory UV glue or coating curing.

■ Typical Features:

Human-machine interface control, making operation more intuitive, comprehensive information, and high control accuracy.

This desktop UV drying system features a split design, compact appearance and size, meeting the curing needs of online precision products while saving energy during the drying process.

■ Technical Parameters:

Power Supply: Single-phase 220VAC (mains AC) 50HZ

Total Power: Approx. 2.5KW

Dimensions: 1200 L × 595 W × 1350 H mm

Conveying Speed: 0.5~3.0 m/min

Radiation Width: 300mm

Cooling Method: Forced air cooling

Light Source Type: High-pressure mercury (Hg) lamp

Lamp Line Power: 75w/cm

Light Source Configuration: 1 x 2kW

Lamp Life: According to HT test standards, average over 600 hours, with light decay not less than 80%

Main Peak Wavelength: 365nm

Power Adjustment: 100% output

Reflector: Optical reflector

Typical Applications: UV inks, varnish curing, suitable for non-explosive environments

Special Note: The above parameters are for reference only; actual dimensions are based on Xin Haotian's production.
